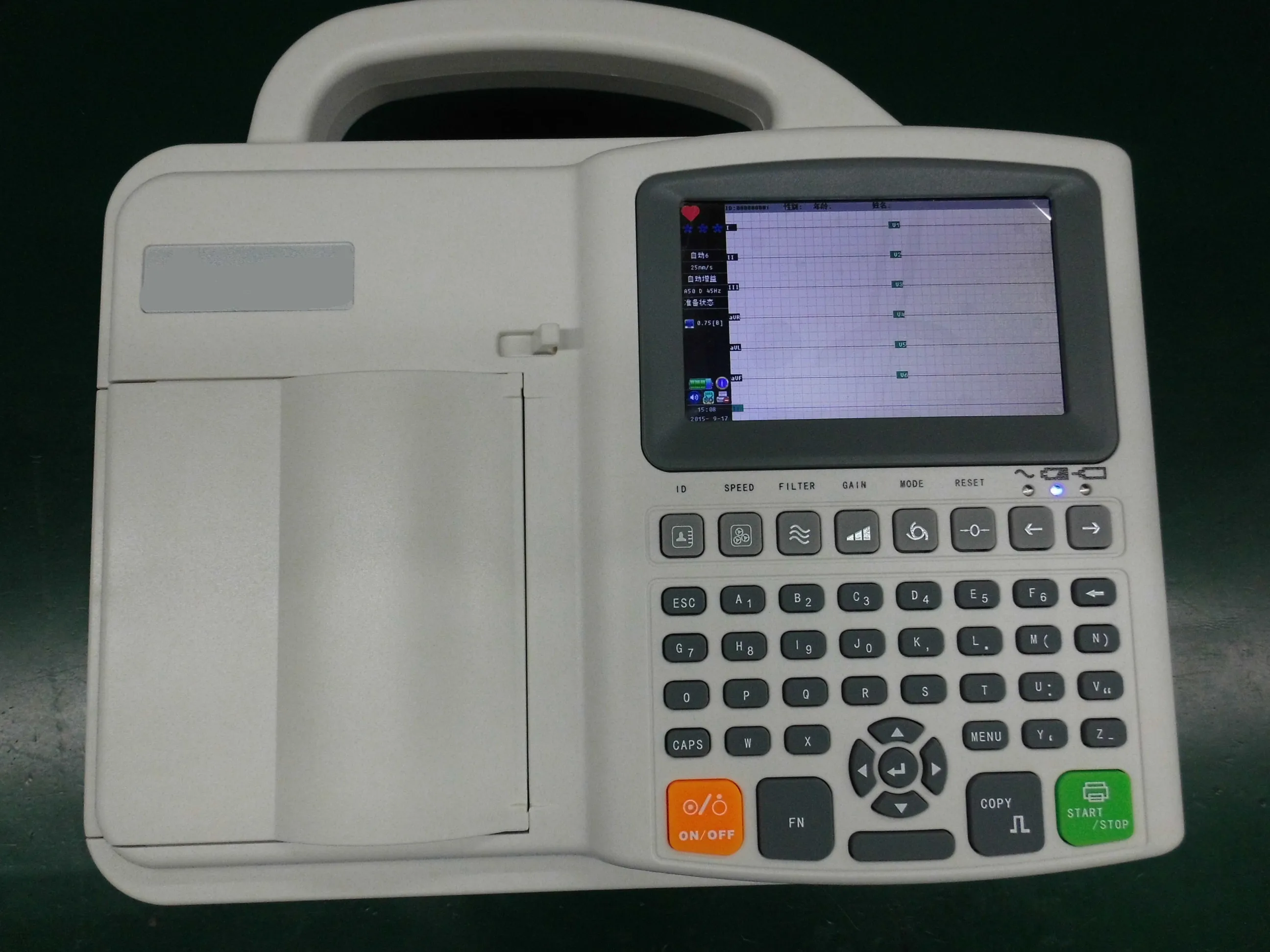

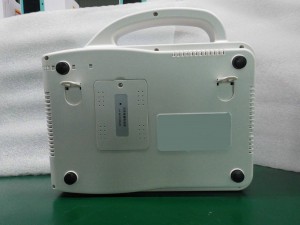

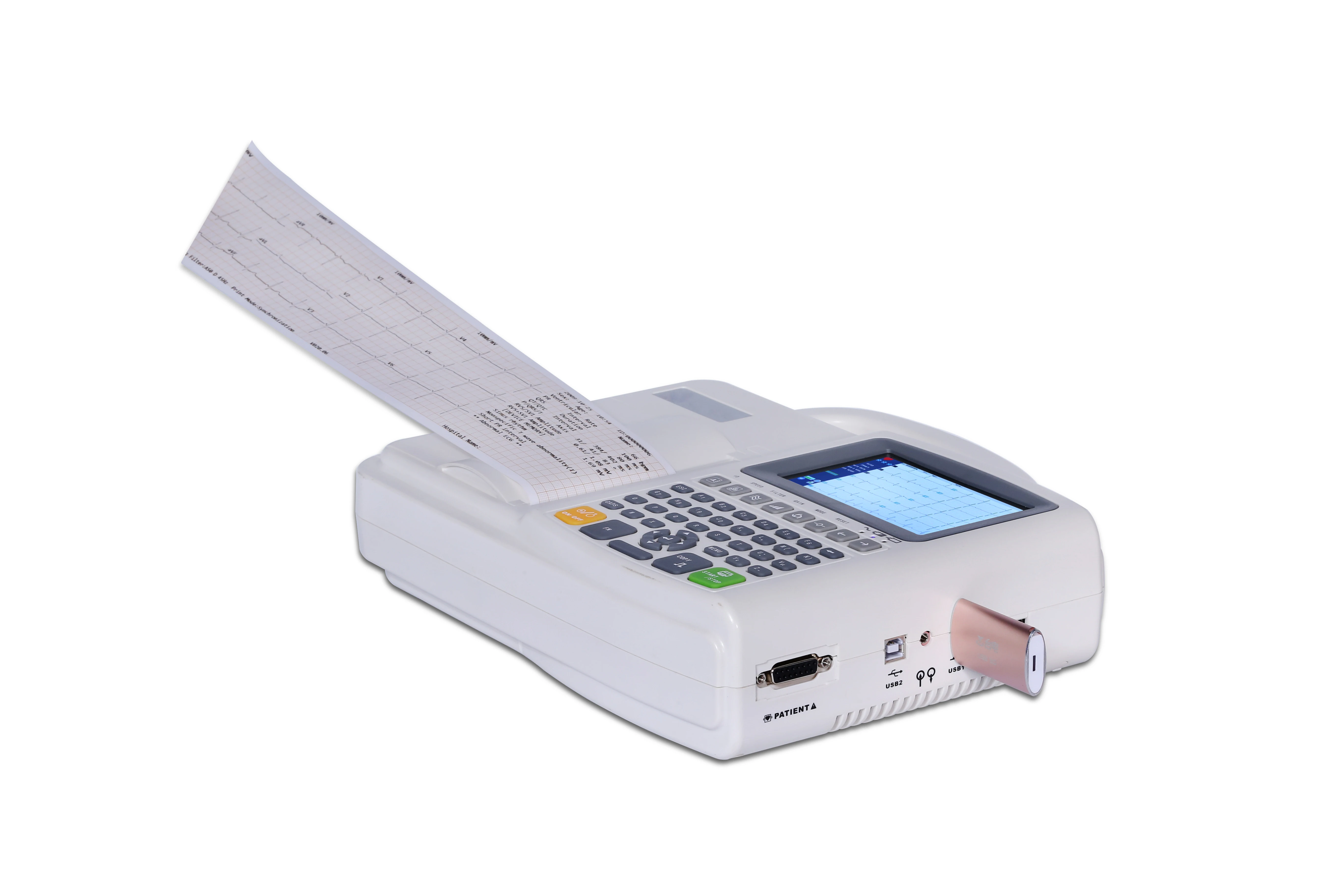

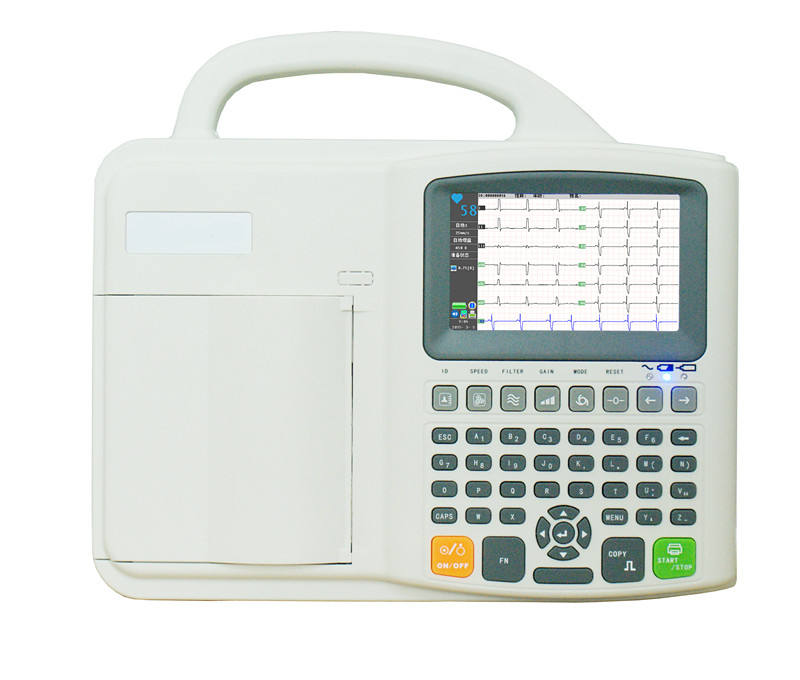

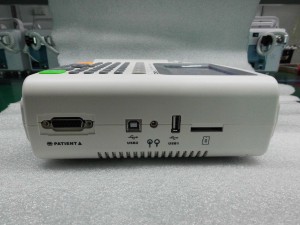

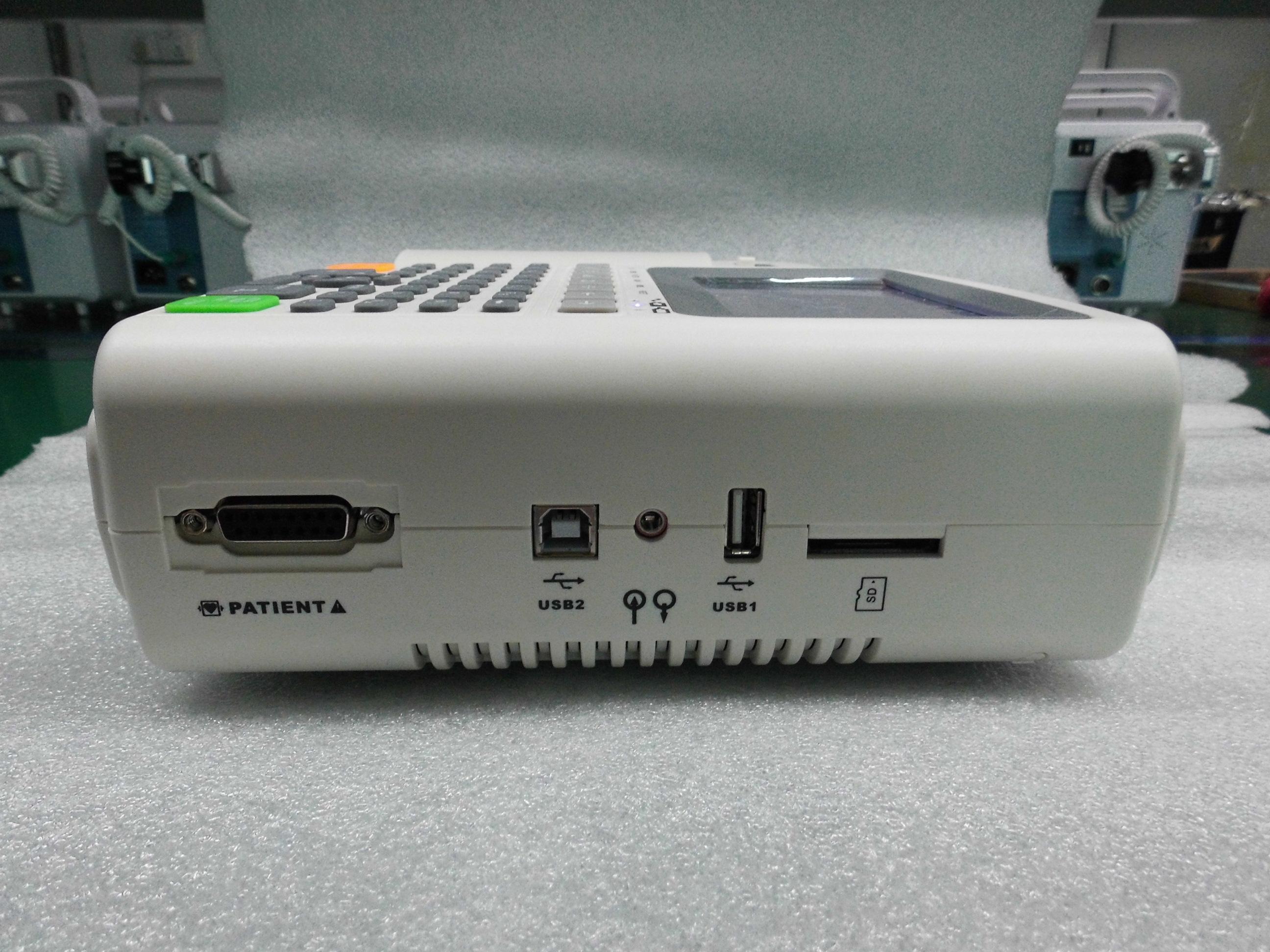

6 Channel ECG Machine Portable Ecg Monitoring Automatic Electrocardiograph 5” Color LCD Screen ECG Machine

Short Description:

Send email to us

Product Detail

Product Tags

Digital Electrocardiograph Series

Features

* 6 channel ECG machine with interpretation
* 5.0″ color TFT LCD display
* Simultaneous 12 leads acquisition and 1, 1+1, 3 and 6 channel (Manual/Auto) recording with high resolution thermal printer
* Manual/Auto working modes
* Use digital isolation technology and digital signal processing
* Baseline stabilization inspection

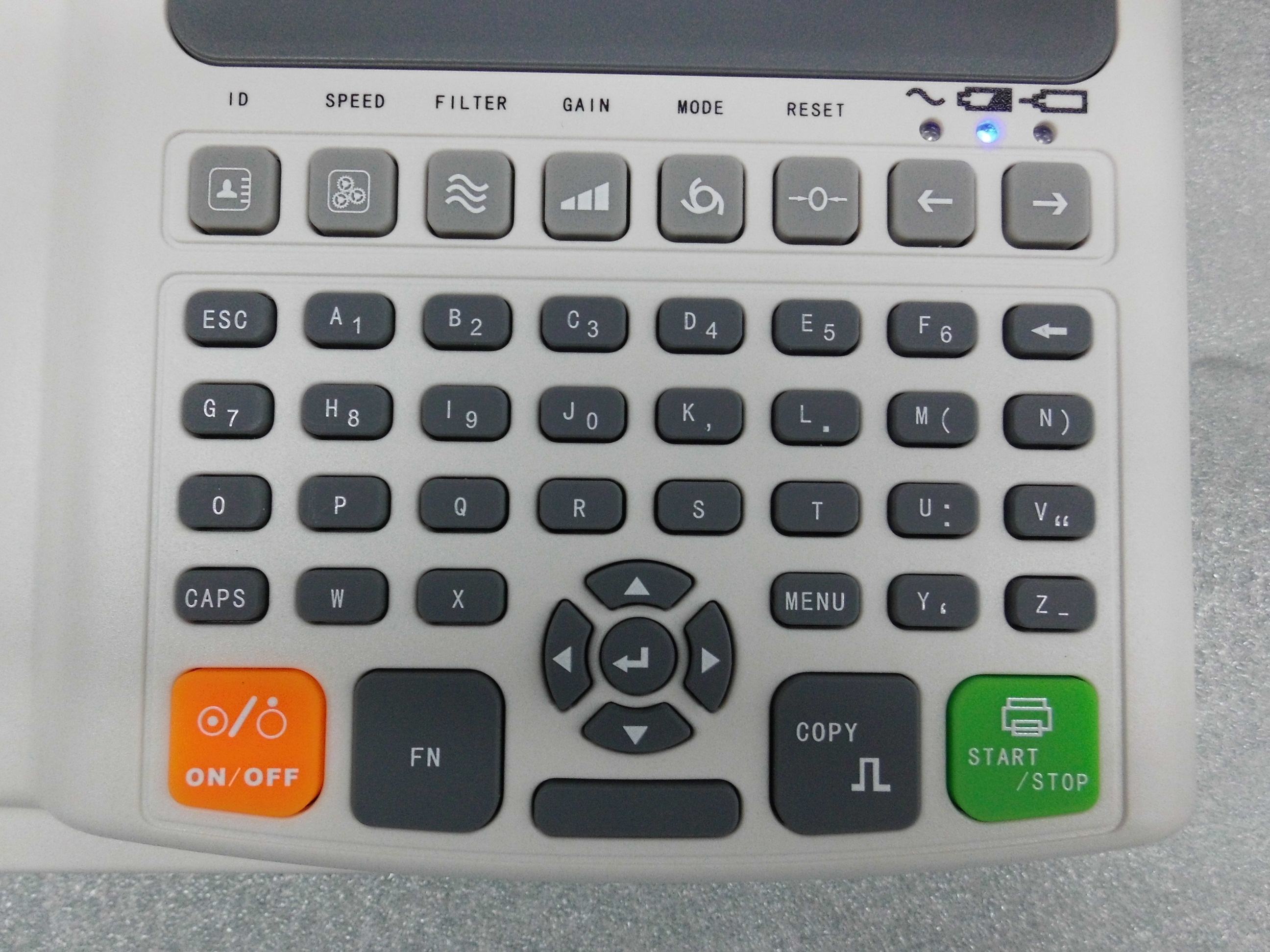

* Full alphanumeric silicon keyboard

* Support U disk storage

Standard ConfigurationMain machine: 1 PC
Patient cable: 1 PC
Limb electrode: 1set (4pcs)
Chest electrode: 1set( 6pcs)
Power cable: 1 PC
80mm*20M recording paper: 1 PC
Paper axis: 1 PC
Power cord: 1 PC

Technical Specifications

Lead	Standard 12 leads
Acquisition	Simultaneous 12 leads
A/D Converter	14bit
Sampling Rate	1000Hz
Working Mode	Manual/Auto
Interference Filter	AC Filter and EMG Filter
CMMR	≥100dB (with AC filter)
Input Circuit	Floating, protection circuit against defibrillator effect
Input Circuit Current	≤0.1μA
Input Impedance	≥50MΩ
Patient Current Leakage	＜10μA
Calibrating Voltage	1mV±2％
Skin Voltage Tolerance	≥±500mV
Time Constant	≥3.2s
Frequency Response	0.05 Hz～250Hz
Noise Level	＜15μVp-p
Sensitivity Threshold	≤20μV
Signal Channel Interference	≤0.5mm
Printer	Thermal printer
Paper	112mmx20m, roll
Page Speed	6.25, 12.5, 25, 50mm/s (±3％)
Sensitivity Printer	10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV
CPU	32 bits
Safe Class	GB9706.1, Class I, Type CF
Power Supply	AC 220V (±10%), 50Hz±1Hz, Power ≤60VA AC 85～265V, 50/60Hz DC14.8V (2200mAh), rechargeable Li-ion battery
Dimension	310mm×270mm×73mm
Weight	1.75kg (with battery)
