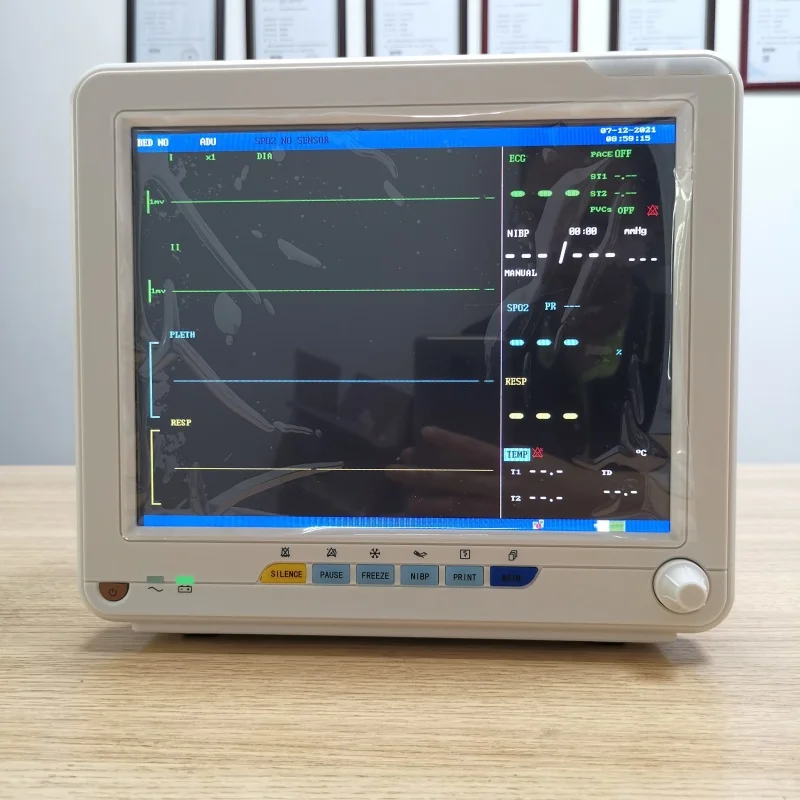

Cheap Price Portable Adult Neonatal Children Cardiac Monitor Multi Parameters Vital Signs Patient Monitor
Cheap Price Portable Adult Neonatal Children Cardiac Monitor Multi Parameters Vital Signs Patient Monitor
Multi Parameter Patient Monitor Price Patient Vital Signs Monitor
Feature
1-12.1″TFT color LCD,800*600dpi2-Standard 5 para: ECG, SpO2, NIBP,TEMP, RESP
3-Fanless desian, quiet, energy-saving and clean.
4-With standard interface, OxyCRG, trend chard, big character interface and view bed,
5-Operation mode: keys and buttons.
6-Display up to 8-channel waveform on one screen.
7-NlBP measurement mode: Manual/AUTO/Continuous, storage for 1000-group NlBP data.
8-Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
9-Drug concentration calculation and titration table functions.
10-Print trend table data with one-key.
3-Fanless desian, quiet, energy-saving and clean.
4-With standard interface, OxyCRG, trend chard, big character interface and view bed,
5-Operation mode: keys and buttons.
6-Display up to 8-channel waveform on one screen.
7-NlBP measurement mode: Manual/AUTO/Continuous, storage for 1000-group NlBP data.
8-Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.
9-Drug concentration calculation and titration table functions.
10-Print trend table data with one-key.
11-Connect to Central Monitoring System WiFi or wired mode.
12-AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
13-Anti-high frequency surgical unit, defibrillation-proof(special leads are necessary).
Technical Specification
|
ECG:
|
Lead mode: 3/5-lead(R,L,F,N,C) Lead selection:l,ll,lll,avR,avL,avF,V
Waveform:3 and 7channel selectable Gain selection:0.5mm/mv,1mm/mv,2mm/mv Sweep speed:12.5mm/s;25mm/s;50mm/s Heart rate range: Adult: 15~300bpm; Neonate:/pediatric:15~350bpm Accuracy: +lbpm or+1%,whichecer is greater Resolution: 1bpm Filter: surgery mode:1~20Hz monitor model:0.5~40Hz Diagnostic mode:0.05~130Hz Scaling signal:1mv,+3% Protection: with stand 4000VAC/50 voltage isolation against electro surgical interference and defibrillation Alarm range: 15~350bpm S-T segment detecton: Measurement range:2.0mV~+2.0mV Alarm Range:-2.0mV~+2.0mV Accuracy:-0.8mV~+0.8MV+0.02Mv Error:Arrhythmia analysis: YES |
|
SPO2: |
Measurement range: 0~100%1% Resolution:+2%(70-100%);0-69%
Accuracy:unspecifed Alarm range0~100% Pluse Rate:range:20~300bpm Resolution:1bpm Error:+1bpm or +2%,whichever is greater |
|
NIBP: |
Method:Digital Automatic oscillometricOperation mode:Manual/Automatic/continuous
Auto measurement time: Adjustable(1~480min) Measurement Unit:mmHg/Kpa selectable Measurement types: Systolic, Diastolic, Mean Measurement tange:Range of Systolic pressure:Adult: 40~270mmHg Pediatric:40~220mmHg Neonate: 40~135mmHg Range of mean pressure: Adult:20~235mmHg Pediatric: 20~165mmHg Neonate:20~110mmHg Range of diastolic pressure: Adult: 10~215mmHg Pediatric:10~150mmHg Neonate :10~100mmHg Over-pressure protection: Double safety protection Resolution:1 mmHg Alarm:Systolic.Diastolic,Mean |
|
RESPIRATION |
Method:Thoracic impedanceMeasurement range: Adult:7~120rpm; Neonate/Pediatric:7~150rpm
Apnea alarm: Resolution: YES,10~40S 1rpm Accuracy: +2rpm |
|
TEMP |
Compatible probe:YSl or CYFMeasurement range: 5~50℃
Resolution : 0.1℃ Accuracy: +0.1℃ Refreshing time: about 1 Average measuring time: ＜10s |
