China [Copy] Fetal Heart Monitor for Pregnant Women CTG Machine 12.1 TFT Color Screen Fetal Monitor Manufacturer and Factory

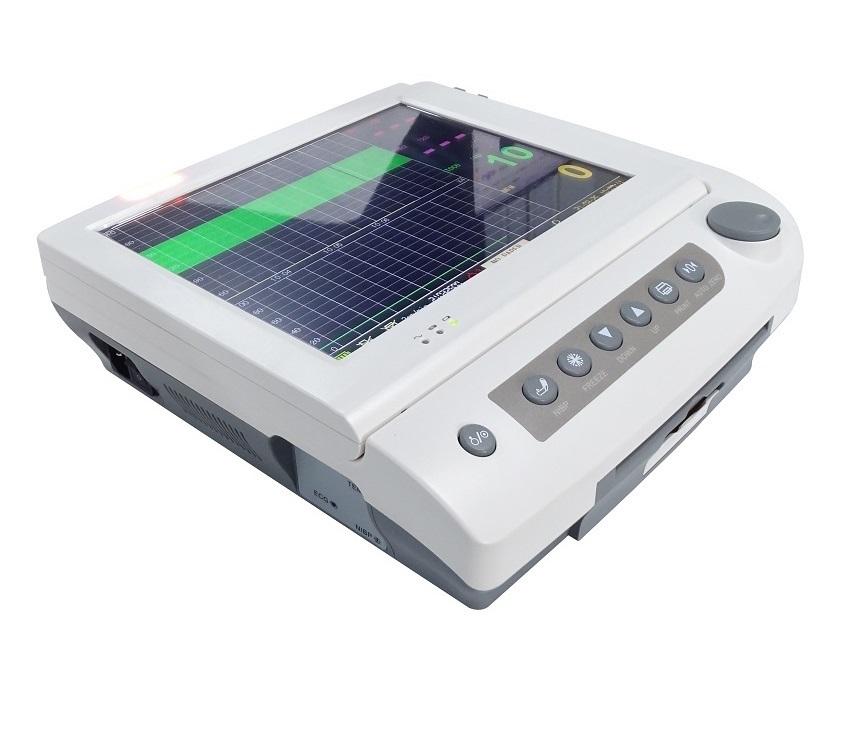

[Copy] Fetal Heart Monitor for Pregnant Women CTG Machine 12.1 TFT Color Screen Fetal Monitor

Short Description:

Product Detail

Product Tags

This series is a lightweight, compact fetal and maternal monitor, it can meet the need of whole stages of labor (including antepartum and intrapartum monitoring for fetus and mother),It also can be connected to the obstetrical central station.

Feature

● Light and compact design, simple to use front panel controls

● 12.1″ TFT Colour screen, folding 90 degree
● The system setup can be done very easy and can be stored automatically
● The internal line 152mm thermal printer can records FHR, TOCO
● The life exceed over 20 years

● A standard patient event marker and a clinical event marking button to separately mark Clinical events
● Auto Fetal movement are available
● Multi-crystals, wide beam form, high sensitivity ultrasound transducer, low ultrasound power, Safer to the fetal
● AC or LI-battery operated
● More than 12 hours data storage, then can be played and reprinted * Build-in interface to the central nurse station

Technical Specification

FHR	Transducer	Multi-crystals, wide wave beam, pulsed-wave working method, high sensitivity
	Strength	<5mW/cm2
	Working Frequency	1.0MHz
	Signal Processing	Special DSP system and modern recogniti0on
	Measurement Range	50-240bpm
	Alarm Range	High limit:160,170,180,190bpm Low Limit:90,100,110,120bpm Maximum Audio Output Power:1.5 Watt
TOCO	Measurement Range	0-100 Units
	Display	LCD shows the FHR trace, TOCO traced, FM, Doctor Event Mark, Time, Volume etc monitor state, and also it can store and playback.
	Dimention	35032085mm
	Net Weight	3.5kg
SpO2	Measurement Range	70%-99%
SpO2	Measurement Accuracy	±3% error
NIBP	Measurement Range	SYS 6.7～32.0kPa(50～240mmHg) MEAN: 3.4～26.6kPa(25～200mmHg) DIA: 2.0～24.0ka(15～180mmHg)
NIBP	NIBP Accuracy	±1.1kPa（±8mmHg）or ±5% of results, taking the bigger one;
HR	HR Measurement Range	40bpm～240bpm
HR	Measurement Accuracy	±2 bpm or ±5% of the results, taking the bigger one
Standard	SPO2, MHR, NIBP, TEMP, ECG, RESP, FHR, TOCO, FM
Optional	Twin Monitoring, FAS(fetal acoustic simulator)
