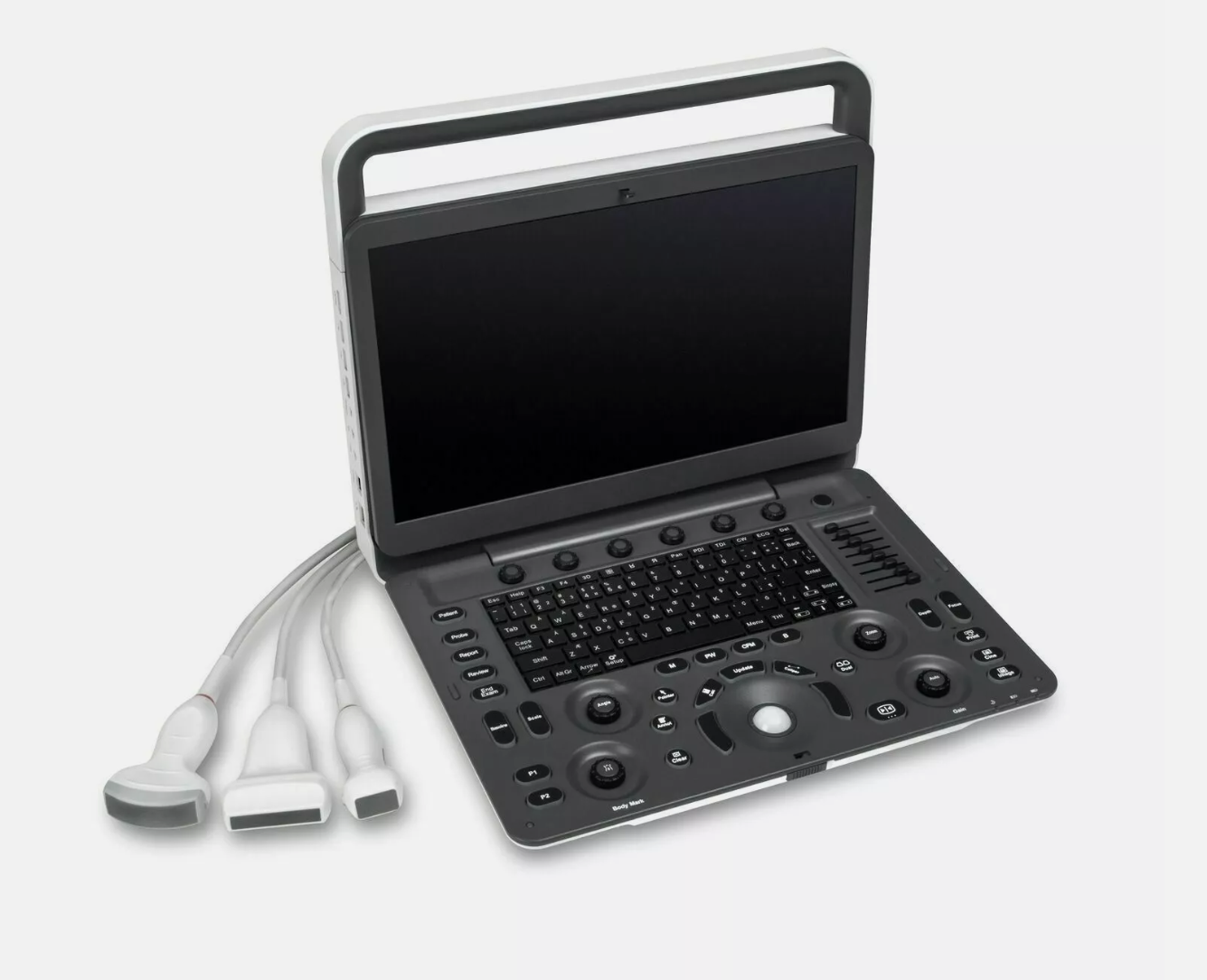

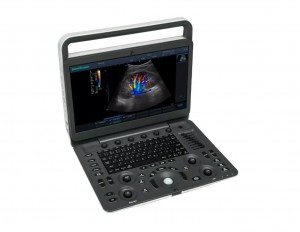

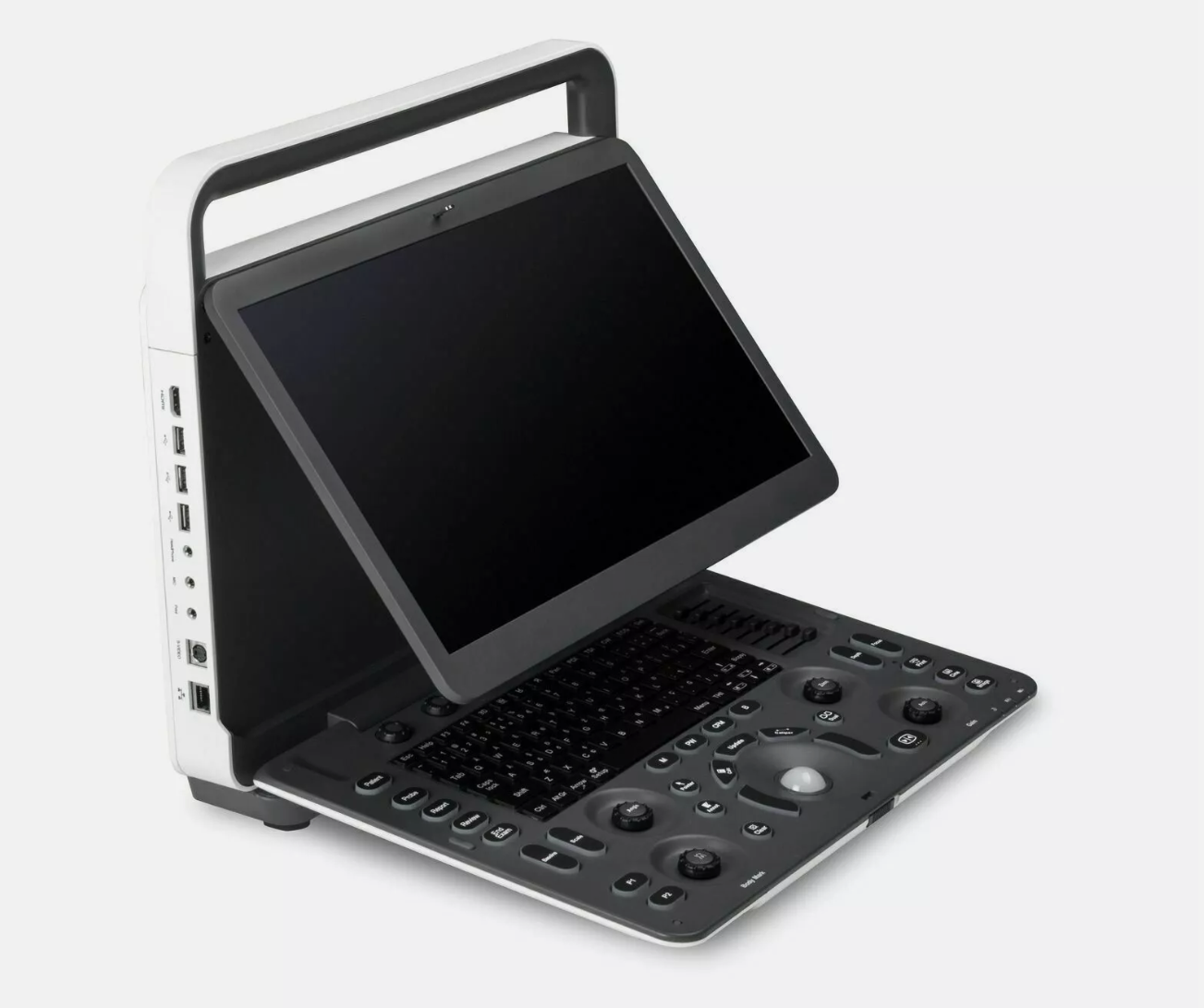

Ultrasound Scanner Digital Ultrasonic Echography Machine Portable Ultrasound No reviews yet
Ultrasound Scanner Digital Ultrasonic Echography Machine Portable Ultrasound No reviews yet
Powerful function & Configuration:
1. Large screen display with 15.6 inches LED;
2. Built-in lithium battery, which can work more than 3 hours after power off;
3. Small size, light weight is about 4.5KG, easy to carrry;
4. Equipped with a wide range of probes of abdominal, obstetric, vascular, cardiac, small organs, urinary application,etc.
5. Built in 3D mode;

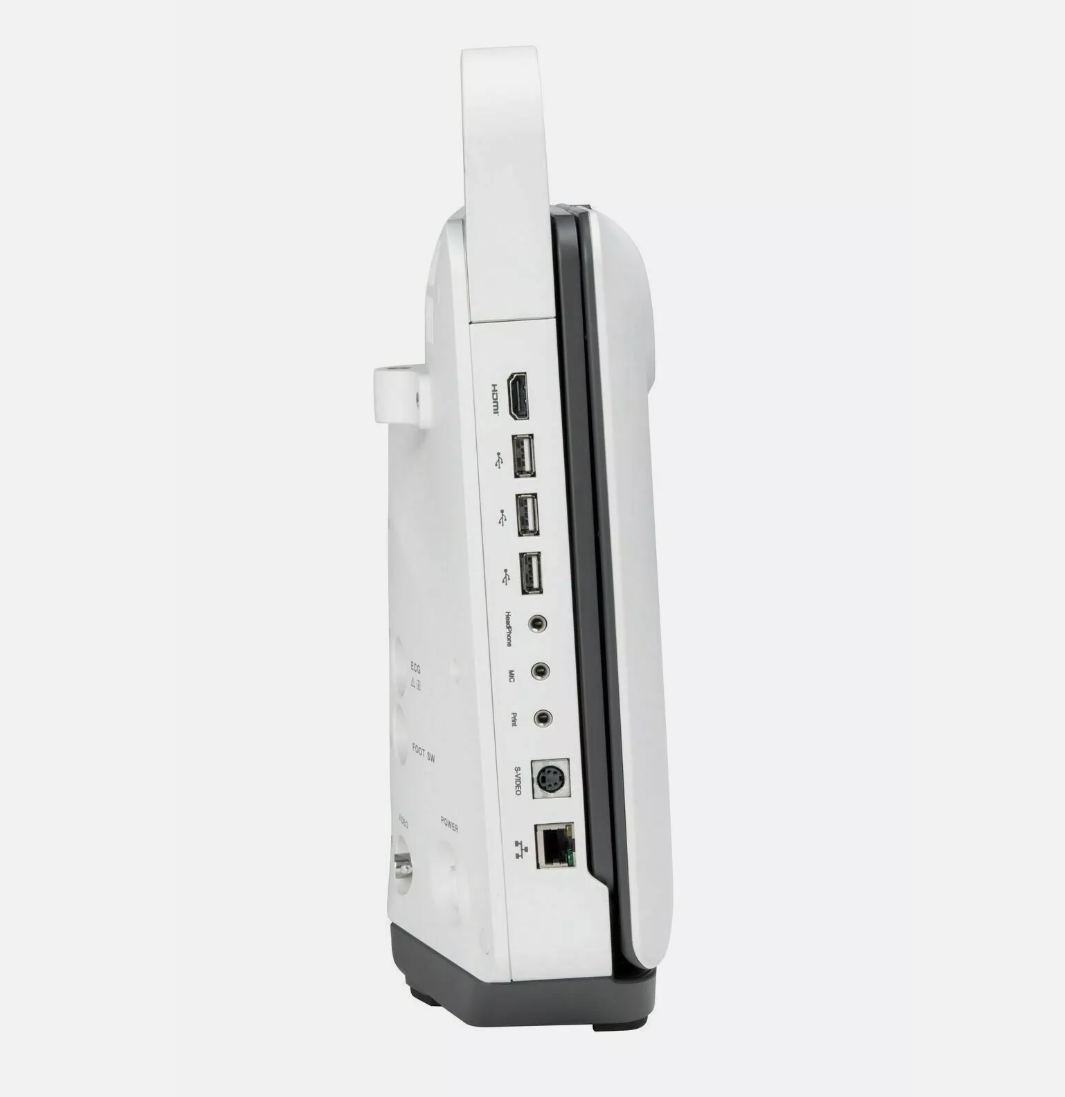

6. A variety of digital peripheral interfaces, provides a variety of image output methods;
7. PC platform, easy to operate, meet various software upgrades;
Rich clinical application function:
1. B+CF (Dual Images)
1. B+CF (Dual Images)
2. B+CF/PDI/DPDI + PW (Triplex)
3. Convex extended imaging technology;
4. Linear array deflection/Trapezoidal imaging technology;
5. Spatial compound Imaging technology;
6. Panoramic imaging technology
7. 3D/4D imaging technology
8. Speckle noise removal technology
9. Pulse inversion tissue harmonic imaging technology (THI)
Physical Specifications
Equipment size：365mm×300mm×75mm
Equipment weight：5.5kg
Packing size：490mm×270mm×490mm
Packing weight：10kg
Equipment size：365mm×300mm×75mm
Equipment weight：5.5kg
Packing size：490mm×270mm×490mm
Packing weight：10kg
|
Transducer Ports
|
2
|
|
USB Ports
|
2
|
|
Hard Disc
|
64GB (SSD), 120G/200GB SSD (Optional)
|
|
Footswitch
|
USB
|
|
Ethernet Port
|
2(100Mb/1000Mb)
|
|
External Display
|
VGA, HDMI,
|
|
Printer(Optional)
|
USB Printer, Digital Laser Printer, Digital B/W Thermal Printer
|
|
Printing Area
|
Image, report, Image+report
|
|
DICOM Connectivity
|
DICOM3.0 Compliant
|
|
Image Storage
|
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI Export Image Format: PNG, JPEG, BMP, DICOM USB Flash Drive |
